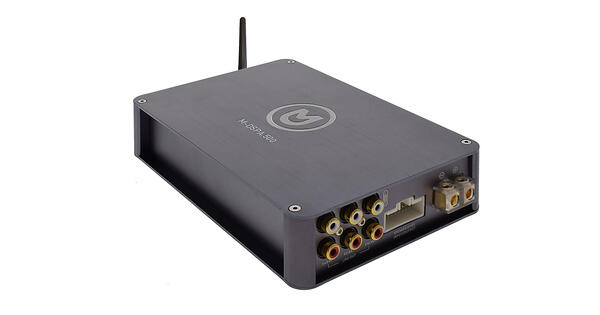

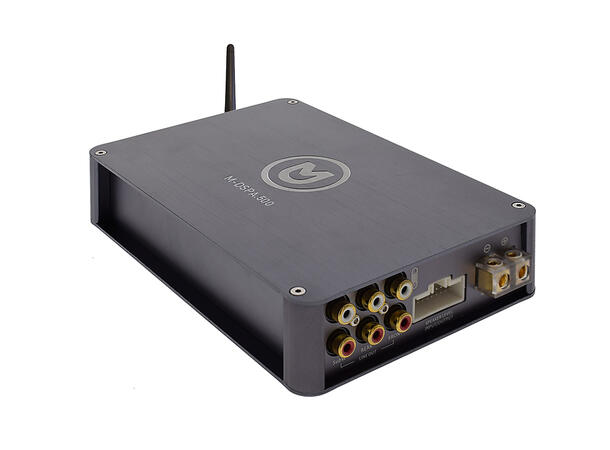

Macrom M-DSP.500 – forsterker

Macrom M-DSP.500 - forsterker

5-kanals forsterker med innebygget DSP prosessor og muligheten blåtann strømming, kontrollert via APP på smarttelefon.

Function

• 5-channel amplifier with DSP processor
• Hi-Resolution Audio streaming Bluetooth
• 4 high level inputs with autosensing
• 5 powerd outputs
• 4 + 1 line outputs
• Bluetooth connection for adjustment and control
• App dedicated for Android and iOS
• Active crossover By-pass, Low-pass, Hi-pass and Band-pass
• Time delay adjustable between 0 and 230 cm
• Param 7-band parametric equalizer
• Adjustment of output level, mute and phase for each channel
• Dynamic Bass adjustment
• 5 presets that can be stored in the amplifier

Specifications

• Nominal output power
  54Watt x 4 channels class AB (32W RMS)
  300Watt x Class D Subwoofer (170 RMS) min 2 Ohm
• Operating frequency range from 20Hz to 20KHz
• Noise signal ratio > 120dB
• Dynamic range > 100dB
• THD: 1KHz < 0.001%
• Standby current < 0.1mA
• Maximum current consumption 30A
• Operating voltage from 9 Volts to 15.5 Volts

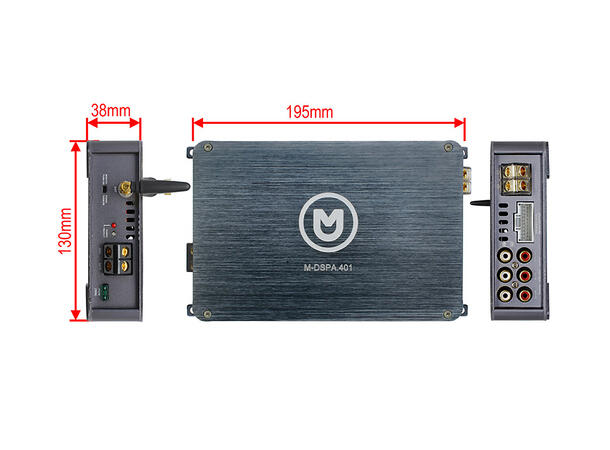

• Dimensions (mm): 195 x 130 x 38

Download from Google Play Store or from the
Apple Store the Control App for M-DSPA.500
