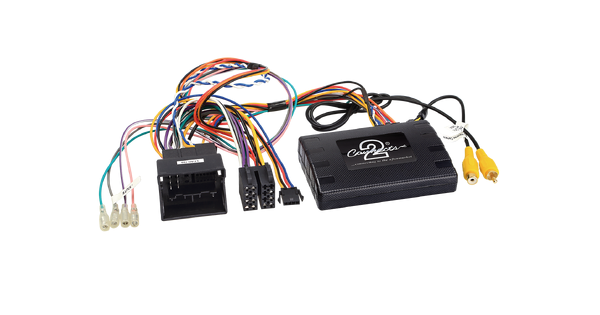

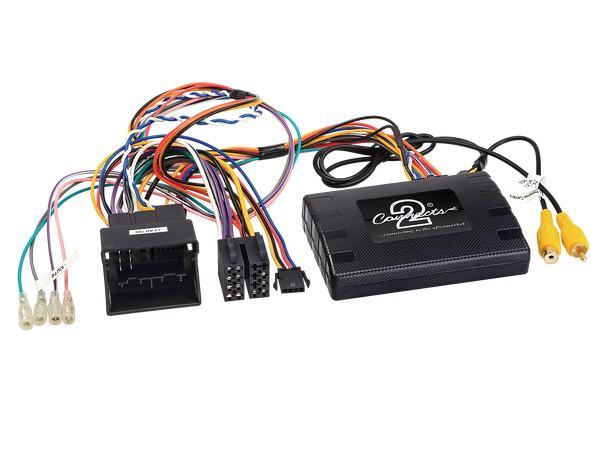

VW infoadapter
for vehicles with SWC
connector: 52 Pin Quadlock VAG
to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU
vehicles with MIB OEM HU
vehicles without amplified system
Not for vehicles:
with OEM Most amplified system
with open dash
without any OEM preparation (SWC, Speakers, Head Unit)
E-Call not supported
CAR swich pannel to retain vehicle settings is necessary
to reset buttom function of the swich pannel press MENU 10 sec
Vehicle application:
VW Golf VII (AU) 08/2012 - 2020*
VW Polo 5 (6C facelift 6R) 04/2014 - 2017**
VW Crafter 2017 - 2021*****
Seat ibiza (6P) 2015 - 2019***/*****
Seat Leon (5F) 2012 - 2017***/*****
Skoda Octavia III (5E) 2013 - 2017****
Following signals are provided:
Ignition
Illumination
Reverse
Speedpulse
Parkingbreak
SWC
visualisation climate control
visualisation OPS
CAR vehicle settings
*2-DIN facia 381320-32-1
** 2-DIN facia 381320-34-1
***2-DIN facia 381328-07
****2-DIN facia 381320-33-1
*****swich pannel 381320-32-7 / 381320-33-7
