Note:

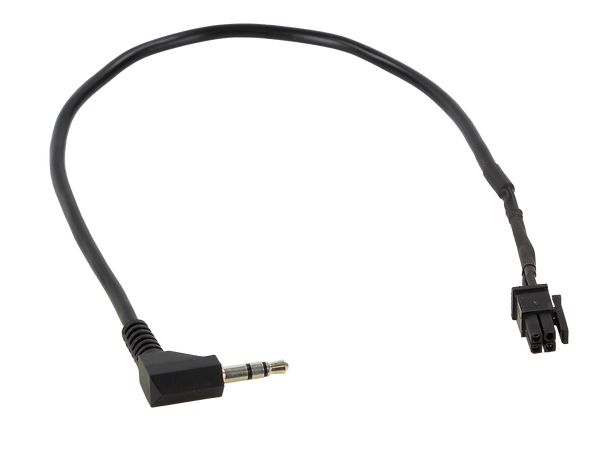

connector: Molex Micro Fit plug 4Pin(f) > 3,5mm Jack
SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip swiches (OFF/ON/ON)
Note:
Jack ring red wire > BAT43 Schottky diode/blocking diode 0.2A with cathode/ring side to Micro Fit plug
Use case:
Pioneer 3,5mm Jack connector
HU application:
Pioneer units 2021/2022> with flat glossy metallic back panel
Pioneer AVH
Pioneer AVH-A240BT
Pioneer AVH-A240DAB
Pioneer DMH
Pioneer DMH-A240BT
Pioneer DMH-A241BT
Pioneer DMH-A340DAB
Pioneer DMH-A245BT
Pioneer SPH
Pioneer SPH-DA160DAB
Pioneer SPH-DA360DAB
DIP switches 42cx401:
Pioneer > OFF/ON/ON
