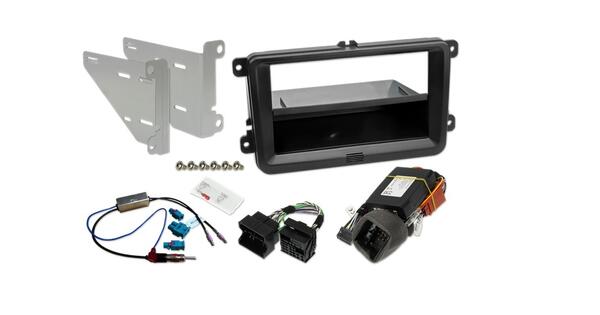

The installation kit KIT-HALO-VW303 lets you perfectly integrate a 1DIN Alpine Halo system (INE-F904D, INE-F904DC, iLX-F905D, iLX-F115D) or 2DIN Head Unit such as the iLX-705D, INE-W720D or INE-W720DC into a compatible Volkswagen, Seat or Skoda vehicle.
The KIT-HALO-VW303 includes a CAN to UART interface featuring support of the steering wheel remote control buttons (latest data protocol including SIRI and OK Google support). It also supports the small display in the instrument cluster (MFD), as well as the visual parking display (PDC) and air condition / heating display (HVAC). You get easy analog signal output from the CAN bus for ignition, parking brake, speed pulse and reversing signal.
An antenna adapter with phantom feed and a power Quadlock adapter are included as well. You can even directly connect the original VW / Skoda / Seat microphone and reversing camera with the wiring harness.
General:
- Installation kit compatible for VW platforms (MIB-PQ - Seat, Skoda and VW)
- CAN to UART interface with Steering wheel remote control (SIRI Ready) and instrument multi-function display (MFD) support
- Visual Parking Display (PDC) and air-conditioning / heating display support
- CAN to analog conversion for ignition (ACC signal), parking brake, speed pulse and reversing signal
- Retention of original vehicle settings (interface settings adjustable in Alpine head unit)
- Alpine vehicle-specific connection harness with Quadlock connector
- Power Quadlock adapter inclusive
- Retention of HVAC (Heating, Ventilation and Air Conditioning) and OPS (Optical Parking Sensor) display (if original available)
- SIRI and OK Google support
- Supports original vehicle amplifier, microphone and rear camera 2)
- Includes antenna adapter with phantom feed
- Including removeable 1DIN storage compartment for the installation of 1DIN head units in 2DIN radio slot.
- Compatible Alpine Head Units: iLX-705D, iLX-F905D, iLX-F115D, INE-F904D, INE-F904DC, INE-W720D, INE-W720DC
ompatible Cars
Volkswagen
Amarok (2H)
03/2010 - 08/2016
Volkswagen
Beetle (5C)
11/2011 - 05/2016
Volkswagen
Caddy (2K / 2KN)
2010 - 05/2015
Volkswagen
CC (3CC)
01/2012 - 11/2016
Volkswagen
EOS (1F)
05/2006 - 05/2015
Volkswagen
Golf VI (1K / 1KM)
11/2008 - 04/2013
Volkswagen
Golf VI Cab. (1K / 1KM)
06/2011 - 2016
Volkswagen
Golf Plus Facelift
01/2009 - 2014
Volkswagen
Jetta VI (16)
01/2011 - 2016
Volkswagen
Passat CC (35)
06/2008 - 2012
Volkswagen
Passat B7 (36)
11/2010 - 10/2014
Volkswagen
Polo V (6R)
03/2009 - 04/2014
Volkswagen
Scirocco III (13)
08/2008 - 2017
Volkswagen
Sharan II (7N)
09/2010 - 2017
Volkswagen
T5 Facelift (7 H/E/J)
09/2009 - 06/2015
Volkswagen
T6 (7 H/E/J)
07/2015 - 09/2019
Volkswagen
Tiguan (5N)
04/2007 - 2015
Volkswagen
Touran (1T / GP / GP2)
2010 - 04/2015
Skoda
Fabia II (5J)
2010 - 10/2014
Skoda
Octavia II (1Z)
01/2009 - 2013
Skoda
Rapid (NH)
10/2012 - 03/2015
Skoda
Roomster (5J)
2010 - 04/2015
Skoda
Superb II (3T)
07/2008 - 06/2015
Skoda
Yeti (5L)
08/2009 - 2015
Seat
Alhambra (7N)
10/2010 - 2015
Seat
Leon (1P/1PN)
03/2009 - 10/2012
Seat
Toledo (KG)
03/2013 - 2015
1) Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.
2) No support for original RGB cameras
Note: For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.
