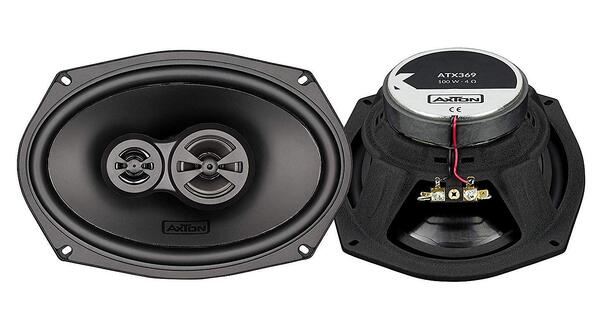

Axton ATX369
The new 3-way triaxial system ATX369 also stands for musicality, precision and resilience - paired with a high degree of installation convenience. The ATX369 has a sensibly dimensioned ferrite magnet, which provides a rich, powerful bass foundation, but also fits into the original installation openings of most vehicles. The mid-bass driver impresses with its low-resonance PP membrane and long-term stable NBR surround. The centering spider made of Nomex and the large voice coil on a polyimide carrier guarantee high mechanical and electrical resilience. The 3-way system uses a specially developed 13 mm fabric tweeter which, thanks to a powerful neodymium magnet, hardly distorts even at high playback levels. In addition, there is a 51 mm Mylar cone mid-range speaker, which is very confident in its frequency range and with great attention to detail. Hard gold-plated connection terminals ensure trouble-free long-term operation without signal losses that affect the sound and underline the value of this AXTON triaxial.
Overview:
- precision-made sheet steel basket
- Voice coil cooling through ventilation openings on the basket
- powerful strontium ferrite magnet
- Injection-molded diaphragm made of low-resonance polypropylene
- linear bead made of NBR nitrile rubber
- Ventilated Nomex fiber centering spider
- 25 mm 4-layer CCAW voice coil on a Kapton carrier
- Tweeter / midrange with 13/51 mm Mylar dome and ferrofluid-cooled neodymium drive
- Foil capacitors as high pass for tweeters and midrange
- hard gold-plated, corrosion-resistant plug contacts
- LS grille included
Technical specifications:
- Frequency response: 45 Hz - 22 kHz
- Nominal impedance: 4 ohms
- Sensitivity 1 W / 1 m: 93 dB
- Nominal load capacity: 100 Wrms
- Installation diameter: 15 x 23 cm
- Installation depth: 69 mm
